DESKTOP COUNTER CALL STATION, TWO WAY WINDOW INTERCOM SYSTEM,

INTERCOM “IC-1-FD”
FULL DUPLEX & PUSH TO TALK OPERATION

DESKTOP COUNTER CALL STATION

ROBUST - EASY TO OPERATE - SECURE - HIGH QUALITY
Two-way Window Intercom System, with Indoor and Outdoor Volumes Separately Adjustable

INTERCOM   IC-1-FD  applications include:

  • Security window reception desks
  • Security screens
  • Customer returns points
  • Bureau de Change
  • Banks teller & Post Office security booths
  • Cash counters
  • Prison visitor communication desks
  • Police stations
  • Petrol / gasoline forecourts
  • Complete dual-way intercom system for easy operation
  • Suitable for places with inside and outside intercommunication such as banks, hospitals, ticket offices and stock companies
  • The Intercom Speech Transfer system is designed to improve communication at fixed screen security counters. Based on proven, reliable  technology. Standard PTT push to talk or  FULL DUPLEX  system amplifies speech for both customer and staff whist minimising background noise and actively reducing acoustic feedback.

PDF - PROSPEKT DOWNLOAD

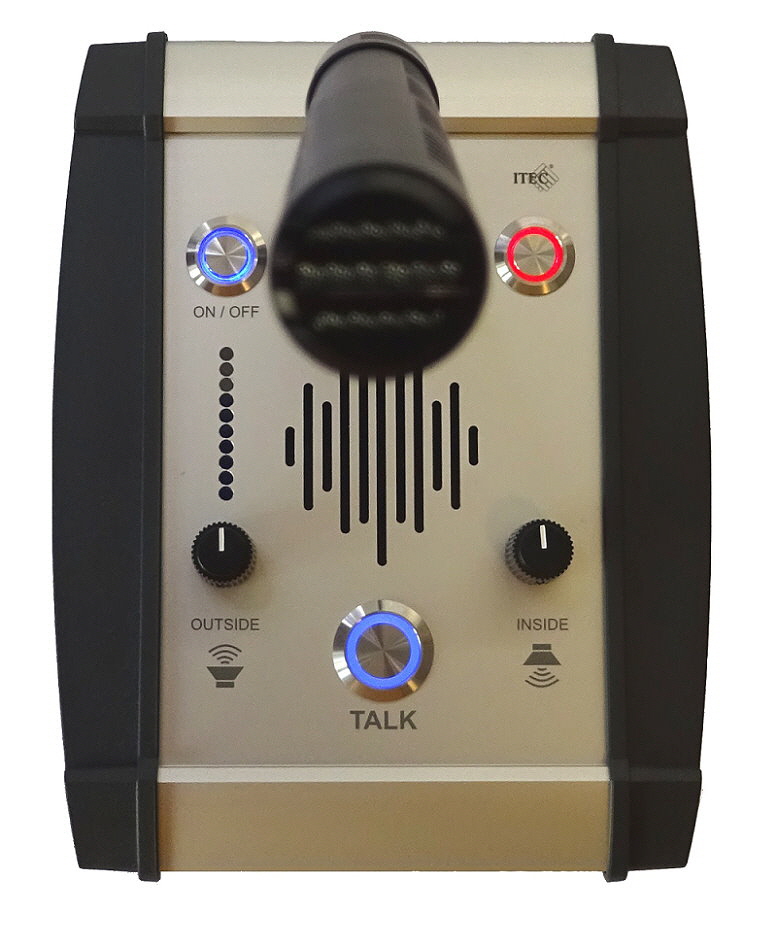

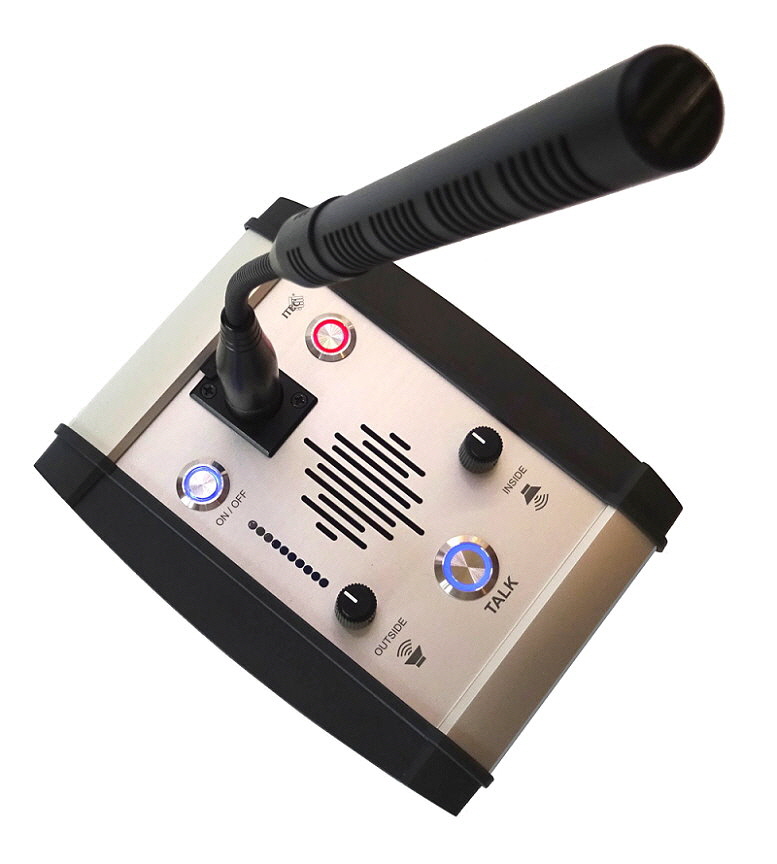

DESKTOP COUNTER CALL STATION IC-1-FULL DUPLEX

.

INTERCOM  „IC-1-FD“
COUNTER STATION (also available as a built-in module on customer request) made of robust 2mm aluminum housing, with exchangeable or FIX mounted high-quality electret condenser microphone and cardioid characteristic for free speech, built-in loudspeaker, LED illuminated buttons. (Option: your company LOGO)

COUNTER STATION  INTERCOM „IC-1-FD“  Thanks to the use of high-quality components, it has very good acoustic properties, an ergonomic shape and is easy to use.
With built-in ALC (Automatic Level Control) prevents overloading, with NOISE GATE - adjustable squelch etc.


Features:

  • Speech and hearing, at the same time in both directions
  • Excellent linguistic quality with high volume
  • Replaceable condenser microphone
  • ALC (Automatic Level Control)
  • NOISE GATE
  • Source achievement if requested from 5 W to 40 W
  • Built-in loudspeaker (On-Off loudspeaker, according on request by order)
  • All keys LED lights up

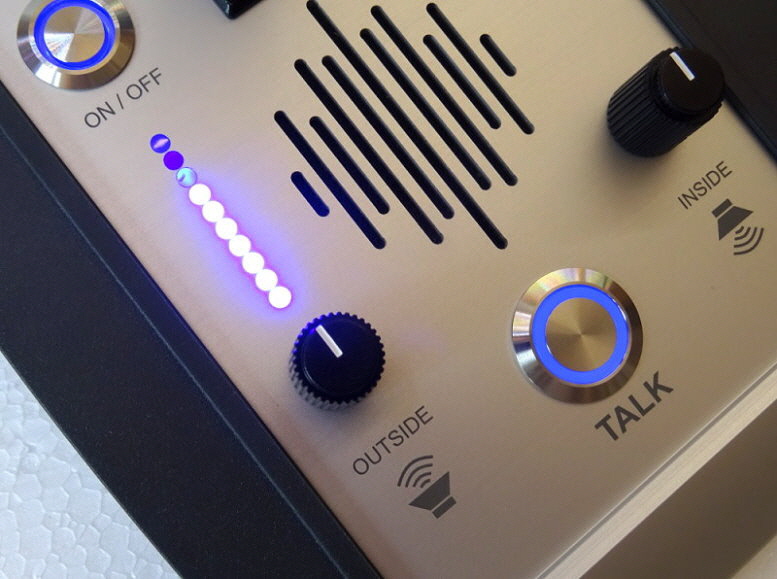

  • Built-in VU Meter
  • Easy and quick installation
  • Adjustable Inside and outside volume
  • If requested different executions availably, standard ALUMINUM table execution
  • Options as an installation version in ALUMINUM
  • Cohearing possibility by switched off inside microphone
  • Guarantee 36 month

OPERATION:

Modell „IC-1-FD“   - EITHER FULL DUPLEX  or  PTT - PUSH TO TALK OPERATION:

  • FULL DUPLEX: Communication takes place without pressing the “TALK” button on the device
  • PTT: For communication, the “TALK” button must be pressed

The volume of the two loudspeakers (inside-outside) is adjusted by the operator using the rotary control button and adjusted accordingly.

Data:

  • Outside: Electret condenser microphone, an easy loudspeaker
    (option: Outside loudspeaker at customer wish, certainly about vandal-proof etc.)
  • Inside: Speech place
  • Microphone-speech place: Electret condenser microphone
  • Volume: Rotary regulator for Inside and Outside,
  • VU meter  for inside microphone
  • ON / OFF, speech: High-quality Rustproof keys, all LED lights up
  • Loudspeaker Inside:  high grade  built-in 4 W  loudspeaker
  • power supply:  12V transformer
  • Case: Aluminum profile, 2 mms
  • Dimensions:  181 X 53 X 140 mms, without microphone
  • Side lid. ABS, gray or quartz gray (option: at customer wish wood)

INTERCOM IC-1 - Illuminated buttons - Engraving in local language on request
We also offer counter intercom systems in customer and project-specific expansion

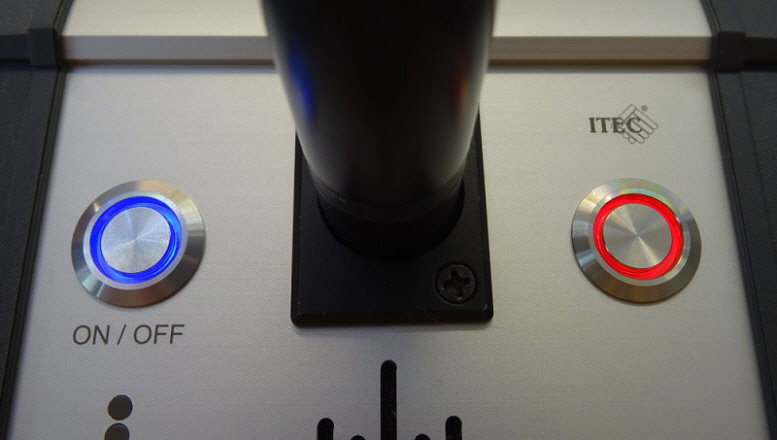

ON-OFF-TASTE---777-X

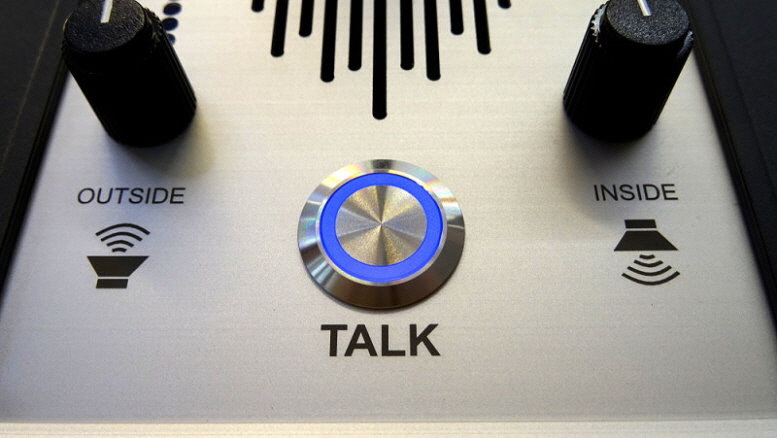

. TALK-TASTE---777-X

.

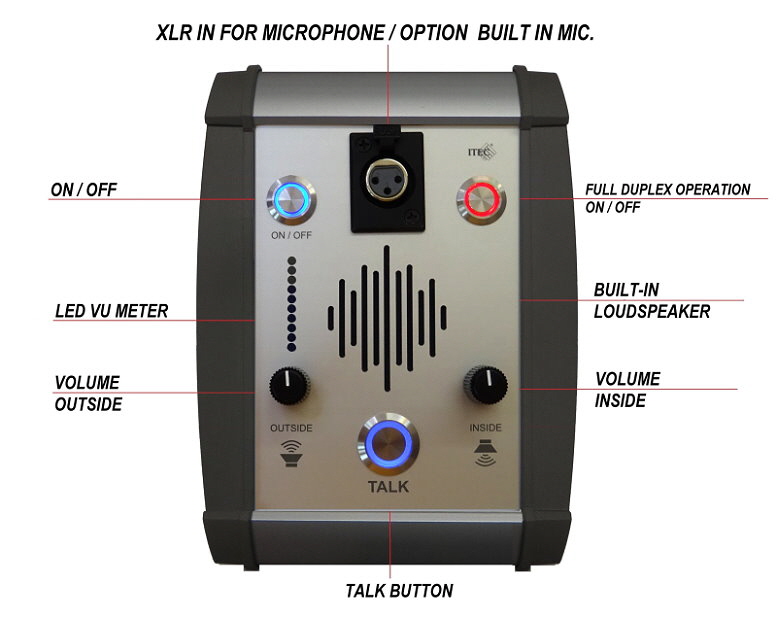

. DESKTOP COUNTER CALL STATION IC-1-FULL DUPLEX DESCRIPTION

.

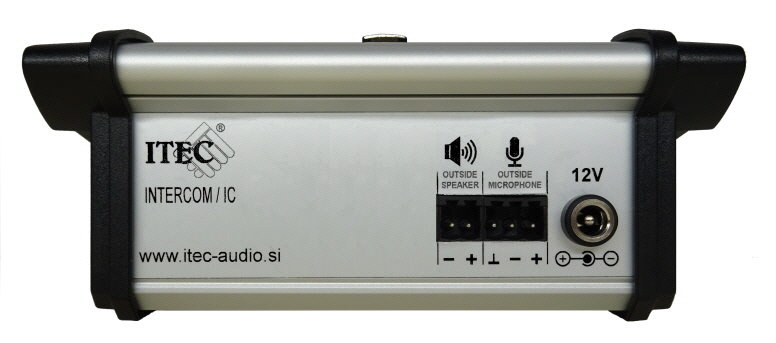

Rear connections:

  • 1 X 5 pole screw terminal (microphone, speaker)
  • 1 x power supply

DESKTOP COUNTER CALL STATION IC-1-FULL DUPLEX  IC-1 BACKSIDE

.

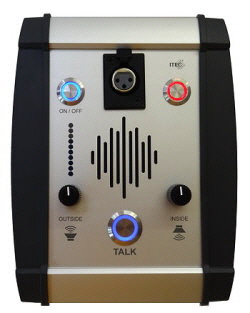

DESKTOP COUNTER CALL STATION FULL DUPLEX   IC-1 XLR MIC

DESKTOP COUNTER CALL STATION
 “IC-1-FD-XLR” -  FULL DUPLEX & Push To Talk  OPERATION

INTERCOM   „IC-1-FD-XLR“

Scope of delivery:

  • Indoor call station IC-1-FD-XLR (table version)
  • Without microphones, AUDIO power supply, external speakers,
  • Dimensions: 181 X 53 X 140mms, without microphone



.

DESKTOP COUNTER CALL STATION IC-1-FULL DUPLEX  SET

DESKTOP COUNTER CALL STATION
“IC-1-FD-XLR-SET”- FULL DUPLEX & Push To Talk  OPERATION

INTERCOM   „IC-1-FD-XLR-SET“

Scope of delivery:

  • 1 x indoor call station IC-1-FD-XLR (table version)
  • 1 x gooseneck condenser microphone on XLR
  • 1 x power supply / 12 VAC AUDIO plug power supply unit
  • 1 x built-in capsule microphone  / stainless steel version, M12 - 20x12x30mm
  • 1 x simple wall speaker
  • 1 x 3 m connection cable (microphone / loudspeaker)
  • Dimensions: 181 X 53 X 140mms, without microphone
  • Weight including speaker, power supply, packaging: about 3Kg


.

DESKTOP COUNTER CALL STATION FULL DUPLEX   IC-1 BUILT IN MIC   350 X

DESKTOP COUNTER CALL STATION
“IC-1-FD-BUILT- IN” -  FULL DUPLEX & Push To Talk  OPERATION

INTERCOM   „IC-1-FD-BUILT-IN“

Scope of delivery:

  • 1 x indoor call station IC-1-FD-BUILT-IN (table version)
  • 1 x Gooseneck condenser microphone mounted on the  table-top unit
  • Without AUDIO power supply, capsule microphone, external loudspeaker


.

DESKTOP COUNTER CALL STATION FULL DUPLEX SET

DESKTOP COUNTER CALL STATION
“IC-1-FD-BUILT- IN-SET” -  FULL DUPLEX & Push To Talk  OPERATION

INTERCOM   „IC-1-FD-BUILT-IN-SET“

Scope of delivery:

  • 1 x indoor call station IC-1-FD-BUILT-IN (table version)
  • 1 x Gooseneck condenser microphone mounted on the  table-top unit
  • 1 x power supply / 12 VAC AUDIO plug power supply unit
  • 1 x built-in capsule microphone  / stainless steel version, M12 - 20x12x30mm
  • 1 x simple wall speaker
  • 1 x 3 m connection cable (microphone / loudspeaker)
  • Dimensions: 181 X 53 X 140mms, without microphone
  • Weight including speaker, power supply, packaging: about 3Kg

.

NAPAJALNIK-12V---200-X

TRANSFORMER    AUDIO-AC-Adapter  12V

.

SPM-G   200 X

SPM-G 300      300mm
Replacement microphone for IC-1-PTT-BUILT IN or IC-FD-BUILT IN
Electret gooseneck microphone with cardioid polar pattern.
.

Art

KONDENSATOR MIKROFON

Charakteristik

Niere

System

Back-Elektret

Audio-Frequenzbereich

100-20000 Hz

Maximaler Schalldruck

130 dB

Einsatztemperatur

0-50 °C

Abmessungen

Ø 19 mm x 300 mm

Gewicht

90 g

Anschluss

Befestigungsgewinde



.

SPM-XLR   200 X

SPM-XLR 300      300mm

Exchangeable electret directional microphone with gooseneck
Electret gooseneck microphone with cardioid polar pattern.  3-pin XLR connector.

Art

KONDENSATOR MIKROFON

Charakteristik

Niere

System

Back-Elektret

Audio-Frequenzbereich

100-20000 Hz

Maximaler Schalldruck

130 dB

Einsatztemperatur

0-50 °C

Abmessungen

Ø 19 mm x 300 mm

Gewicht

90 g

Anschluss

3-Pol-XLR

.

SPM-R-XLR   200 X

SPM-R-XLR       320mm

Exchangeable electret directional microphone with gooseneck
Hypercardioid / lobe characteristic.  3-pin XLR connector.

Art

KONDENSATOR MIKROFON

Charakteristik

Niere

System

Back-Elektret

Audio-Frequenzbereich

30-20000 Hz

Maximaler Schalldruck

132 dB

Einsatztemperatur

-10 - +50 °C

Abmessungen

Ø 19 mm x 320 mm

Gewicht

150 g

Anschluss

3-Pol-XLR

CUSTOMER SITE: outdoor microphones, outdoor speakers,
with and without built-in microphone, on request vandal-proof, ...

INTERCOM-OUTSIDE-MIC---350-X

Built-in capsule microphone.
Art: Back Electret Kondensator Mikrofon
Abmessungen: 20 x 12 x 30mm.  Oder 20 x 12 x 40mm.
Einbau: in eine Bohrung Durchmesser 12 mm
Standardausführung: Rostfrei. M12

Art

Einbaukapselmikrofon

Charakteristik

Omnidirectional

System

Back-Elektret

Audio-Frequenzbereich

50-18000 Hz

Maximaler Schalldruck

132 dB

Einsatztemperatur

-25 - +70 °C

Abmessungen

Ø 20 x 12 x 30 mm / Ø 20 x 12 x 40 mm

Gewicht

80g

Anschluss

3-Pol



.

BOUNDARY-MIKROFON

Omnidirectional boundary microphones
Boundary Microphone, Ansteckmikrofone, ...

.

OD WHITE   200 X

SIMPLE WALL MOUNT SPEAKER

Leistung

15W 8Ohm

Treiber, Lautsprecher

1 X Ø 2,5”  ca. 6,35cm

Audio-Frequenzbereich

150-20000 Hz

Schalldruck

92 dB

Maximaler Schalldruck

107dB @5kHz

Einsatztemperatur

-10 - +50 °C

Abmessungen

 H 90 x B 87 x T 110 mm

Gewicht

ca. 1 kg

Gehäuse

ABS - weiß

.

BC-304-306-310---350-X

„COMPACT LOUDSPEAKER“   ABS
 from 4 W to 15W , 8 Ω  alpine white

Leistung

Von 4W bis 20W,  8Ohm

Treiber, Lautsprecher

1 X Ø 130 mm

Audio-Frequenzbereich

100-12000 Hz

Schalldruck

96 dB

Maximaler Schalldruck

107dB @5kHz

Abstrahlwinkel

90° / 55° / 40°

Einsatztemperatur

-10 - +50 °C

Abmessungen

 H 200 x B 200 x T 85 mm

Gewicht

ca. 1,3kg

Gehäuse

ABS - alpinweiß/weiß - Korpus/Lochblech

.

BCH-406---350-X

„COMPACT LOUDSPEAKER“   MDF
with or without a built-in capsule microphone
from 6W to 15W, 8 Ω alpine white

Leistung

Von 4W bis 20W,  8Ohm

Treiber, Lautsprecher

1 X Ø 165 mm

Audio-Frequenzbereich

120-16000 Hz

Schalldruck

96 dB

Maximaler Schalldruck

107dB @5kHz

Abstrahlwinkel

90° / 55° / 40°

Einsatztemperatur

-10 - +50 °C

Abmessungen

 H 260 x B 200 x T 85 mm

Gewicht

ca. 1,6kg

Gehäuse

MDF - alpinweiß/weiß - Korpus/Lochblech

.

LSM-57---350-X

„LSM-57” versatile, high-performance miniature loudspeaker for indoor and outdoor use,   5 W, 8 Ω  black

Leistung

3-5W - 8Ohm

Treiber, Lautsprecher

1 X Ø 57 mm

Audio-Frequenzbereich

420-7000 Hz

Schalldruck

85 dB

Maximaler Schalldruck

107dB @5kHz

Abstrahlwinkel

90° / 55° / 40°

Einsatztemperatur

-30 - +70 °C

Abmessungen

 H 75 x B 69 x T 31 mm

Gewicht

ca. 0,2kg

Gehäuse

ABS - Kunststoff schwarz

.

CSL-106B---200-XCSL-106W---200-X

Built-in speakers in black or white
6 W (10W)

Außenmaße Ø, Einbautiefe (max.) 105 x 72 mm
Gewicht (g), Farben 500 g, weiß, schwarz,

.

CS-015

Sound-Projektor, 15 W,
also for outdoor use 8Ω

Leistung

15W,  8Ohm

Treiber, Lautsprecher

1 X Ø 5 1/4½

Audio-Frequenzbereich

125-16000 Hz

Schalldruck 1 W/1m

96 dB

Maximaler Schalldruck

109dB

Einsatztemperatur

-10 - +50 °C

Außenmaße (ohne Bügel)

Ø 178 mm x 200 mm (L)

Gewicht

ca. 1,6kg

Gehäuse

ABS - cremeweiß

.

PDF - PROSPEKT DOWNLOAD

We also offer counter intercom systems in customer and project-specific expansion.

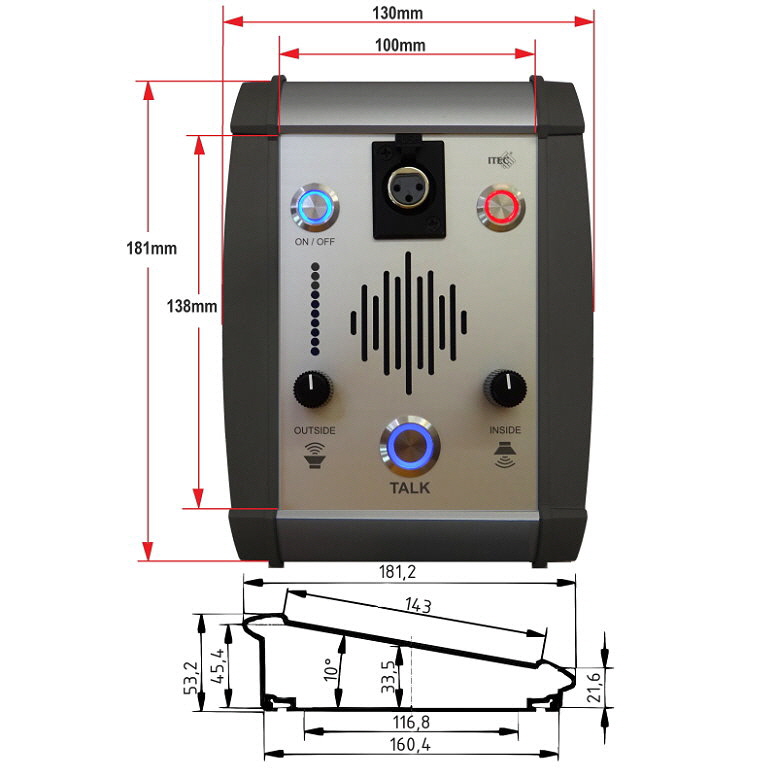

DESKTOP COUNTER CALL STATION FULL DUPLEX  IC-1 DIMENSIONS

.

DESKTOP COUNTER CALL STATION FULL DUPLEX



DESKTOP COUNTER CALL STATION FULL DUPLEX



DESKTOP COUNTER CALL STATION FULL DUPLEX



DESKTOP COUNTER CALL STATION FULL DUPLEX





Schaltersprechsysteme bieten wir auch im Kunden- und projektspezifischen Ausbau an.
